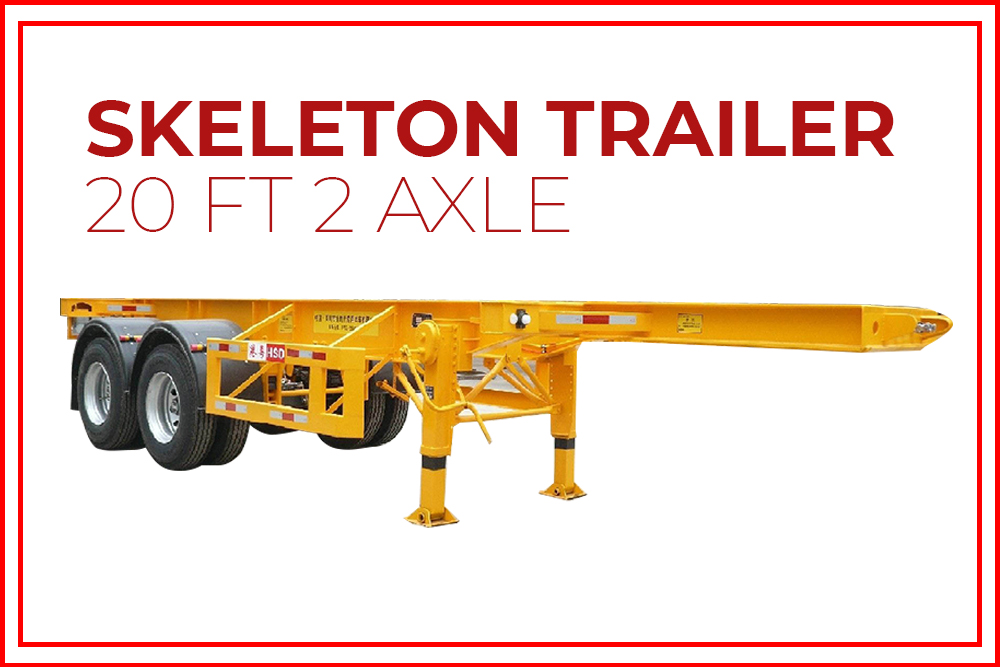

• LENGTH              : 7.100 mm
• WIDTH          : 2.400 mm
• CHASIS              : I Beam 450
• CROSS MEMBER      : I Beam 200, UNP 200, Pipe 3" SC 40
• KING PIN                       : 2" Standard (Welded In)
• PLATE GOOSENECK: 10 mm Thickness
• SUSPENSION         : 8 Leaf Spring 90mm x 16mm And Equalizer Non Bush Type
• AXLE              : 2 Set FUWA Axle Cap 13 Ton / Axle Square
• TWISTLOCK              : 4 Pcs
• SERVICE BRAKE      : 2 Lines Air Brake System With Relay Emergency Valve, Air Tank 40L

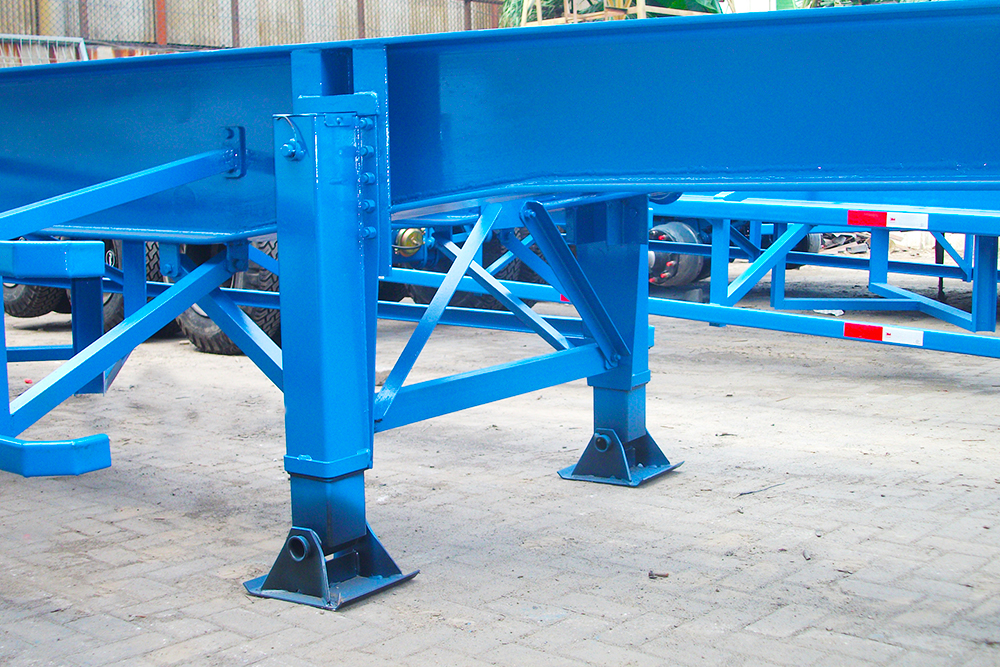

• LANDING GEAR      : 1 Set FUWA Brand, Capacity 28 Ton And Static Load 80 Ton
• RIM                      : 8 Pcs Size 7.50 x 20 Steel Rim
• PAINTING              : 1 Color (Standard)
• ELECTRICAL              : 1 Set With 7 Pin Socket, Tail Lamp Red And Yellow
• SAFETY              : 1 Set Side Guard

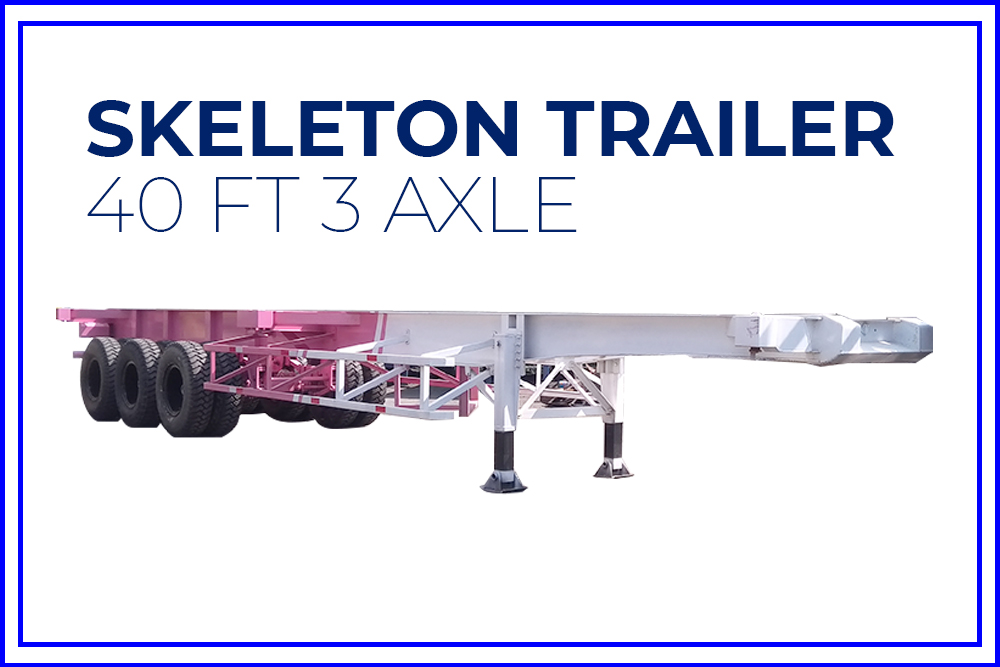

• LENGTH             : 12.100 mm
• WIDTH          : 2.400 mm
• CHASIS              : I Beam 450
• CROSS MEMBER      : I Beam 200, UNP 200, Pipe 3" SC 40
• KING PIN                       : 2" Standard (Welded In)
• PLATE GOOSENECK: 10 mm Thickness
• SUSPENSION         : 8 Leaf Spring 90mm x 16mm And Equalizer Non Bush Type
• AXLE              : 3 Set FUWA Axle Cap 13 Ton / Axle Square
• TWISTLOCK              : 8 Pcs
• SERVICE BRAKE      : 2 Lines Air Brake System With Relay Emergency Valve, Air Tank 40L
• LANDING GEAR      : 1 Set FUWA Brand, Capacity 28 Ton And Static Load 80 Ton
• RIM                      : 12 Pcs Size 7.50 x 20 Steel Rim
• PAINTING              : 1 Color (Standard)
• ELECTRICAL              : 1 Set With 7 Pin Socket, Tail Lamp Red And Yellow
• SAFETY              : 1 Set Side Guard

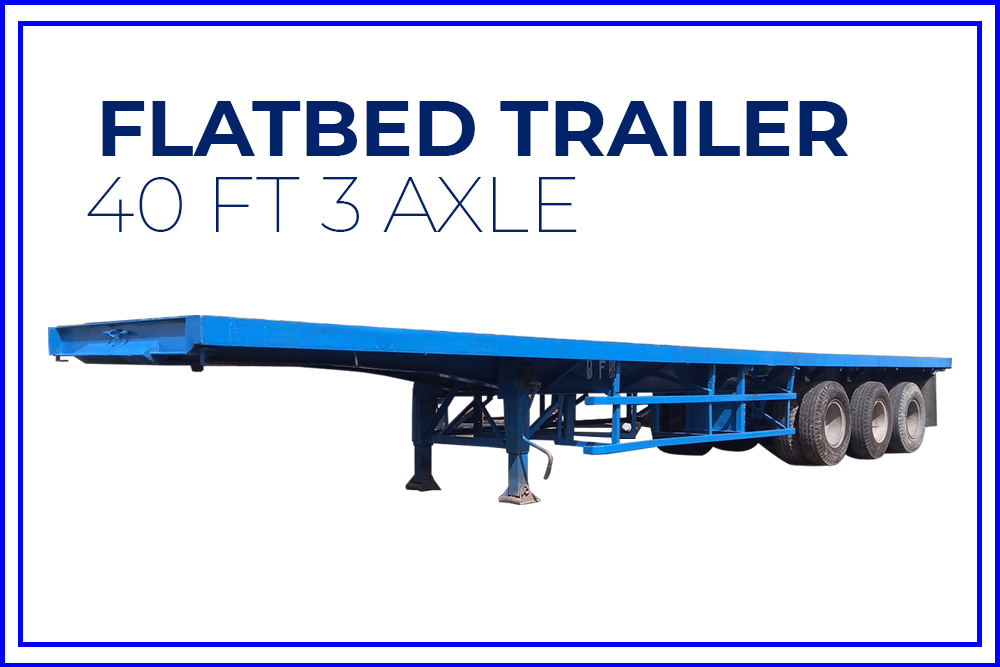

• LENGTH              : 12.100 mm
• WIDTH          : 2.500 mm
• CHASIS              : I Beam 450
• CROSS MEMBER      : I Beam 200, UNP 200, Pipe 3" SC 40
• SIDE MEMBER      : UNP 150

• KING PIN                       : 2" Standard (Welded In)
• PLATE GOOSENECK: 10 mm Thickness
• SUSPENSION         : 8 Leaf Spring 90mm x 16mm And Equalizer Non Bush Type
• AXLE              : 3 Set FUWA Axle Cap 13 Ton / Axle Square
• TWISTLOCK              : 8 Pcs
• SERVICE BRAKE      : 2 Lines Air Brake System With Relay Emergency Valve, Air Tank 40L
• LANDING GEAR      : 1 Set FUWA Brand, Capacity 28 Ton And Static Load 80 Ton
• RIM                      : 12 Pcs Size 7.50 x 20 Steel Rim
• PAINTING              : 1 Color (Standard)
• ELECTRICAL              : 1 Set With 7 Pin Socket, Tail Lamp Red And Yellow
• SAFETY              : 1 Set Side Guard

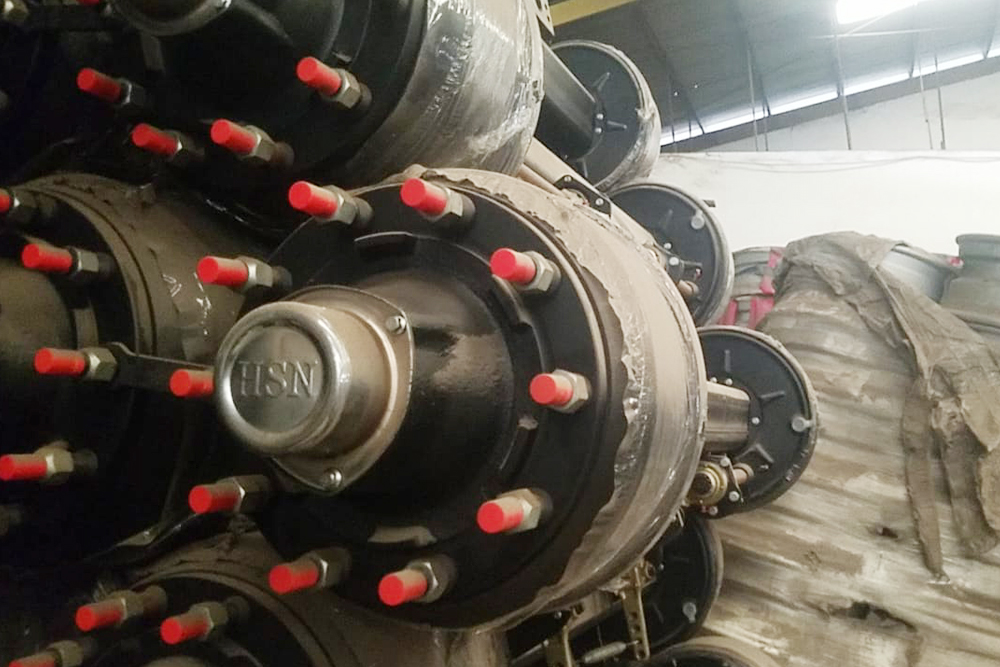

An axle or axletree is a central shaft for a rotating wheel or gear. On wheeled vehicles, the axle may be fixed to the wheels, rotating with them, or fixed to the vehicle, with the wheels rotating around the axle.^[1] In the former case, bearings or bushings are provided at the mounting points where the axle is supported. In the latter case, a bearing or bushing sits inside a central hole in the wheel to allow the wheel or gear to rotate around the axle.

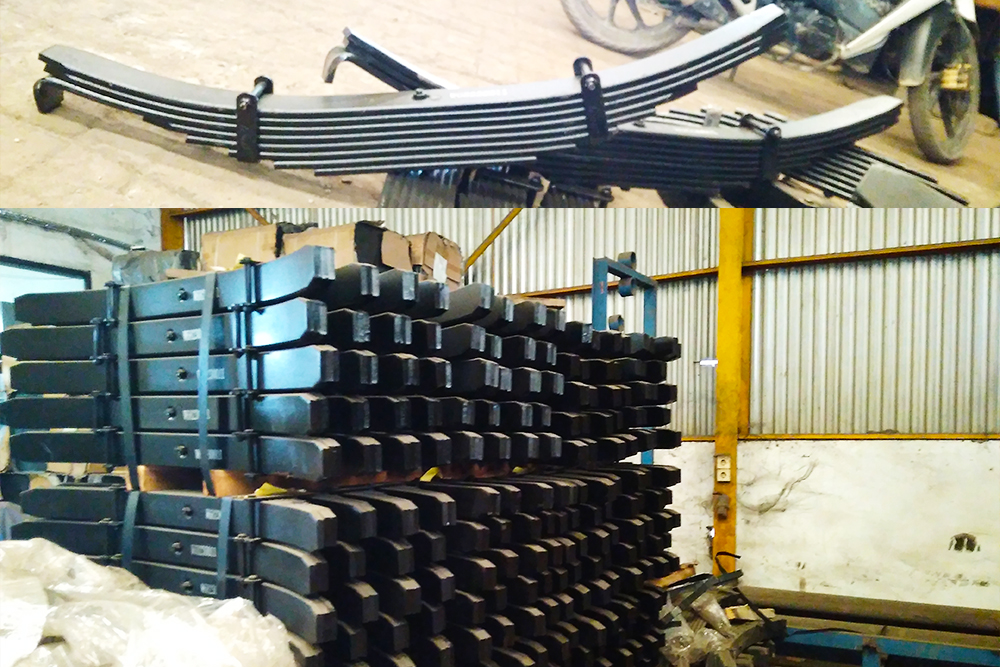

Suspension height: 130-350mm, Color: black/ red/orange/ by customer, Spring width: 75mm, 90mm, 100mm, 120mm, No. Of spring piece/spring quantity is optional.

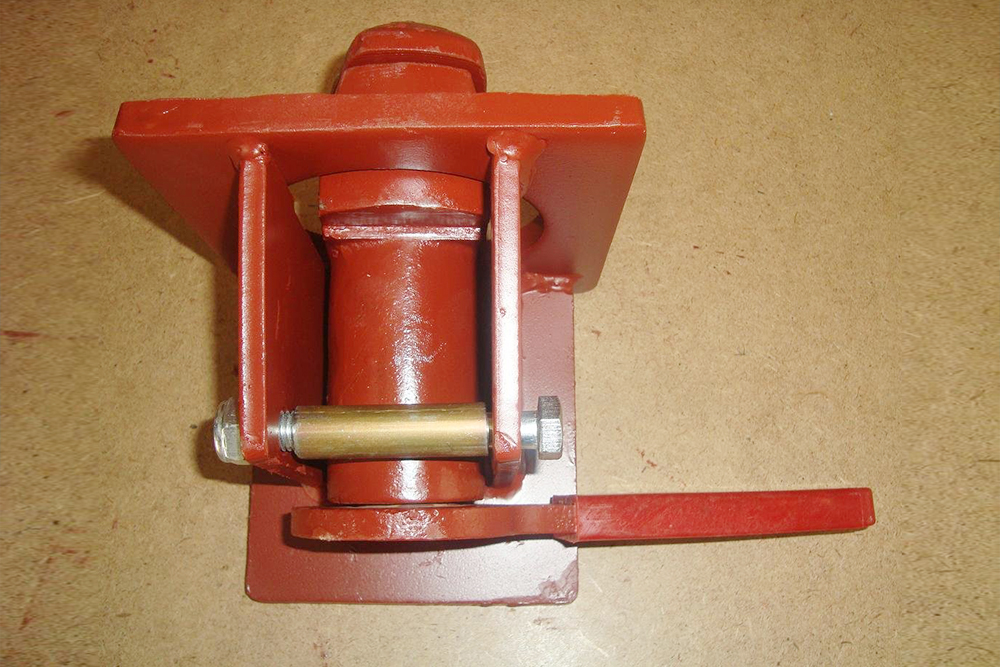

Lock hand is processed with 40Cr accurately.Lock body is made from cast steel,high quality and wear well. Complies with the standard of ISO 1496,ISO 1161. Up-down can rise and fall freely,double revolves toward 360°，container bone trailer and container plat form triler to apply equally.
